2.4Ghz active rfid reader long range reading distance support 4G/WIFI module

Product Categories

Shenzhen Sanray Technology Co., Ltd.

Contact Now

Name: 24Ghz active rfid reader long range reading distance support 4GWIFI module
Brand: SANRAY
Price: 1 USD

Brand Name : SANRAY

Model Number : F2411-O

Certification : CE,ROHS

Place of Origin : China

MOQ : 1

Supply Ability : 10,000pcs/Month

Packaging Details : Standard carton package

Frequency : 2.4GHz~2.5GHz ISM

RF power range : -30dBm~0.0dBm( adjusted by 32 grade )

Receiving sensitivity : -90.0dBm

Reading range : 100m with standard configuration antenna

Communication interface : RS-232, RJ45(Ethernet), Wiegand26/34/42/50( optional)

Optional : WIFI Communication module

Reading tags : 500tags/second

Contact Now

rfid 2.4Ghz active reader long range reading distance support 4G/WIFI

Common Applications:

Smart vehicle system management;

Warehouse checking; Access control and tracking worker,staff/clerk...

Asset identification, tracking and monitoring management;

Personal management in hospital for baby, prisoner, older psychotic etc..

Technology specifications
Operating frequency	2.4GHz~2.5GHz ISM
Antenna	9dbi, Connect 1 antenna through SMA
RF power range	-30dBm~0.0dBm( adjusted by 32 grade )
Receiving sensitivity	-90.0dBm
Operating mode	Fixed frequency
Modulation	GFSK
Reading range	☆ 0~100m (depend on different gain omni-directional antenna,) ☆ RSSI active reader can be adjusted less than 10m
Anti-collision	Up to 500 tags read simultaneously
Communication speed	250kbps, 1Mbps, 2Mbps(adjustable)
Communication interface	RS-232, RJ45(Ethernet), Wiegand26/34/42/50( optional)
Input and output(GPIO)	2 input, 2 output
Power supply	AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A
Product size	208mm×125mm×35mm(L×W×H)
Gross weight	0.79kg
Net weight	0.75kg
Working temperature	-20℃~+70℃
Storage temperature	-40℃~+85℃
Accessories	Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable
Working status indication	Buzzer, LED indicator

2.4Ghz active rfid reader long range reading distance support 4G/WIFI module

Applications:

1. Personanl management: School, sanatorium(old people),hospital

2. Commodity flow control and tracking system

3. Zone tracking management

4. Elderly apartment personnel location solution.

2.4Ghz active rfid reader long range reading distance support 4G/WIFI module

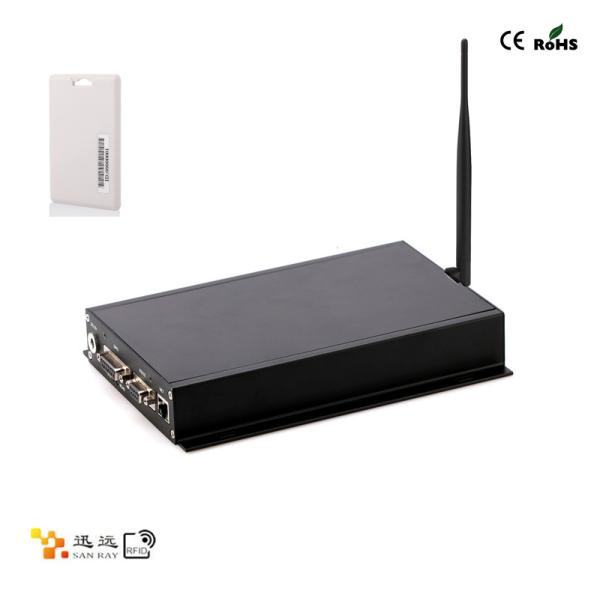

2.4Ghz active rfid reader long range reading distance support 4G/WIFI module Images
